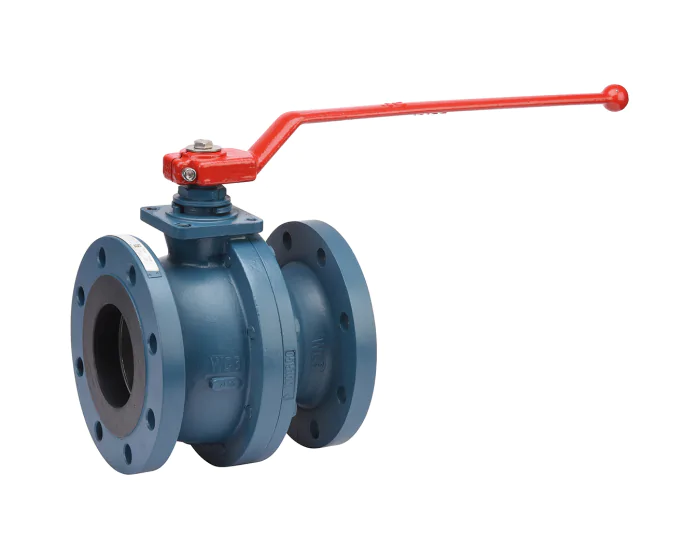

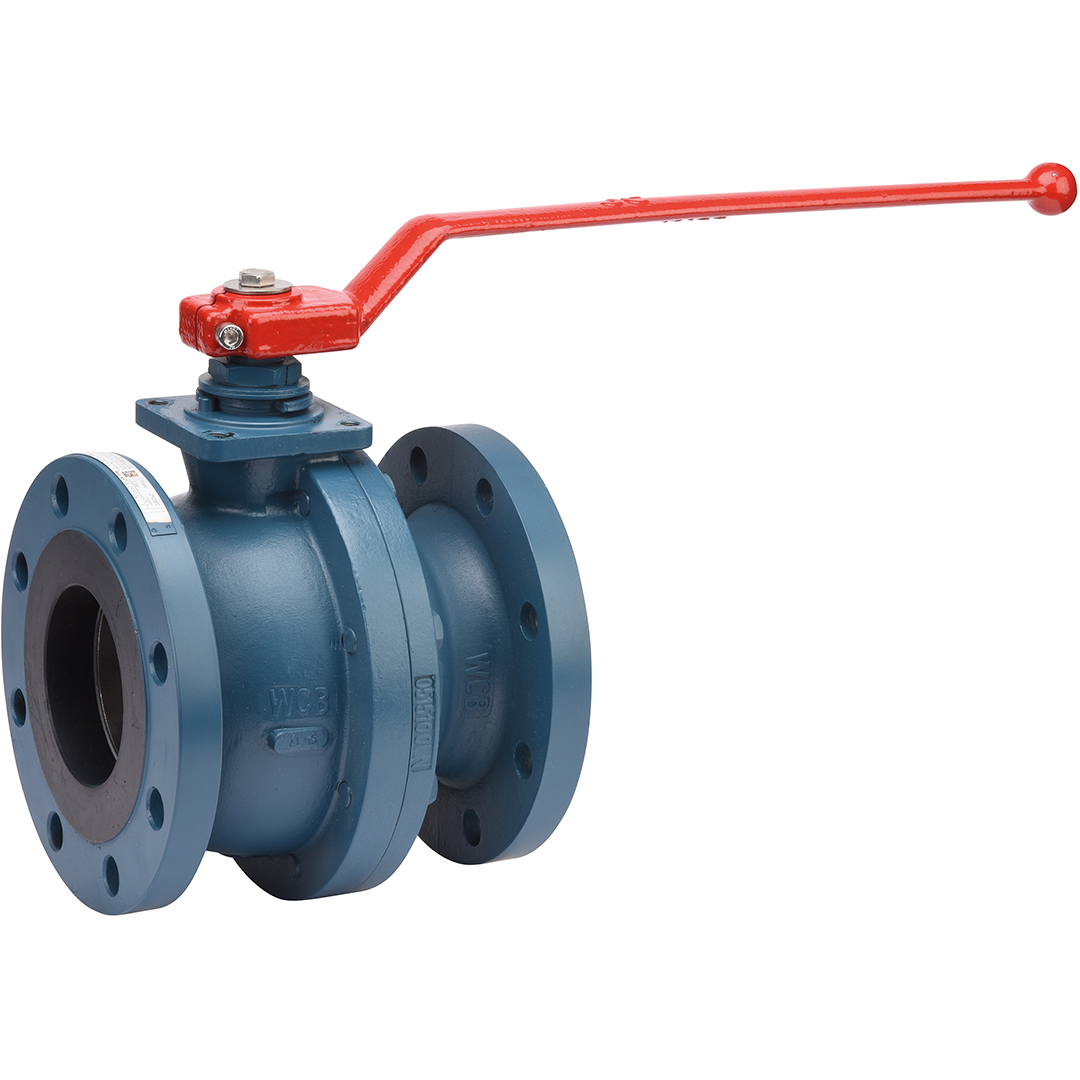

Name: 516AICG carbon steel ball valve RF PN16/40 DN65
Brand: JC VALVES
SKU: 6694
Price: 493.94285714286 EUR
Availability: InStock

516AICG carbon steel ball valve RF PN16/40 DN65

516AICG carbon steel ball valve RF PN16/40 DN65

€493.94 (excl. btw)

The Sferaco ball valve series 540AICG, 2-piece body, steel, PTFE graphite seat, JC range, ATEX zone compatible, DIN short, actuation, fire safety for industries, hydraulics, heating, petrochemical,... .

In stock Subject prior to sales
Categories : Kogelkranen

Documenten:

Certificate of conformity	Download
Manual	Download
Manual FR	Download
Technical datasheet	Download
Technical datasheet FR	Download

Description
Technical Specifications

Specification	Value
DN inches NPS	2''1/2
Option certificate 3.1	Yes
Construction standard	EN 1983 - ISO 17292 - EN 12516
Fire safe standard	ISO 10497:2004. API 607 V5. API 6FA. BS 6755-2
SIL	SIL 3
EN face-to-face standard	EN 558 Series 27
DIN face-to-face standard	DIN 3202 F4. DIN 3357-2 ff
Brand	JC VALVES
Antistatic device	Yes
Steam	Yes
Degassing hole	Yes
Opening device	Handle
Fugitive emissions standard	ISO 15848-1 Class B. TA LUFT VDI 2440
Application	Industry
Square, star (mm)	MEP M22x16
ATEX compatible	Yes
Torque (Nm)	73
DN	DN65 - 2''1/2
Face to Face (mm)	170.0
Fluid	Hydrocarbons. gas
Kv (m³/h)	550
Body material	Carbon steel A216 WCB (1.0619)
Number of ways	2
Bore	Full
ISO pad 5211	Yes
Packing gland	Yes
PS (bar)	16
Connections	Flanged PN10/16
Seats	PTFE-Graphite
Ball material	Stainless steel ASTM A351 CF8M
TS max (°C)	260
TS min (°C)	-29
Ball valve design	Split body
ATEX zone	1 & 21. 2 & 22
Warranty period	5 years
CE	Yes
Main product colour	Blue
Handle material	Ductile iron
Handle type	Red lever
Fire safe	Yes

If you have any questions about this product, please feel free to contact us.

Product Name	Product Number	EVAC Number	Price	Add to Cart
6695	Flanged PN10/16 Carbon steel A216 WCB (1.0619) Full Split body DN65 - 2''1/2	516AICG065	S1006904	€493.94 (excl. btw)	add to cart
6696	Flanged PN10/16 Carbon steel A216 WCB (1.0619) Full Split body DN80 - 3''	516AICG080	S1006905	€656.47 (excl. btw)	add to cart
6697	Flanged PN10/16 Carbon steel A216 WCB (1.0619) Full Split body DN100 - 4''	516AICG100	S1006906	€947.77 (excl. btw)	add to cart
6698	Flanged PN10/16 Carbon steel A216 WCB (1.0619) Full Split body DN125 - 5''	516AICG125	S1006907	€1,537.79 (excl. btw)	add to cart
6699	Flanged PN10/16 Carbon steel A216 WCB (1.0619) Full Split body DN150 - 6''	516AICG150	S1006908	€2,231.46 (excl. btw)	add to cart
6700	Flanged PN10/16 Carbon steel A216 WCB (1.0619) Full Split body DN200 - 8''	516AICG200	S1006909	€4,186.37 (excl. btw)	add to cart
6701	Flanged PN10/16 Carbon steel A216 WCB (1.0619) Full Split body DN250 - 10''	516AICG250	S1006910	€8,741.44 (excl. btw)	add to cart
6702	Flanged PN10/16 Carbon steel A216 WCB (1.0619) Full Split body DN300 - 12''	516AICG300	S1006911	€13,617.83 (excl. btw)	add to cart
6703	Flanged PN10/16 Carbon steel A216 WCB (1.0619) Full Split body DN15 - 1/2''	540AICG015	S1006912	€177.13 (excl. btw)	add to cart
6704	Flanged PN10/16 Carbon steel A216 WCB (1.0619) Full Split body DN20 - 3/4''	540AICG020	S1006913	€206.40 (excl. btw)	add to cart
6705	Flanged PN10/16 Carbon steel A216 WCB (1.0619) Full Split body DN25 - 1''	540AICG025	S1006914	€221.81 (excl. btw)	add to cart
6706	Flanged PN10/16 Carbon steel A216 WCB (1.0619) Full Split body DN32 - 1''1/4	540AICG032	S1006915	€294.21 (excl. btw)	add to cart
6707	Flanged PN10/16 Carbon steel A216 WCB (1.0619) Full Split body DN40 - 1''1/2	540AICG040	S1006916	€312.46 (excl. btw)	add to cart
6708	Flanged PN10/16 Carbon steel A216 WCB (1.0619) Full Split body DN50 - 2''	540AICG050	S1006917	€380.80 (excl. btw)	add to cart
